RangeeOS - Enlarge partitions afterwards

Last modified by Tobias Wintrich on 2025/07/14 10:19

An error during partition resizing can lead to irreversible data loss. It is recommended to create a backup beforehand and to take a snapshot on the hypervisor side after expanding the virtual hard drive.

It is possible to enlarge the system partition afterwards; to do so, proceed as follows:

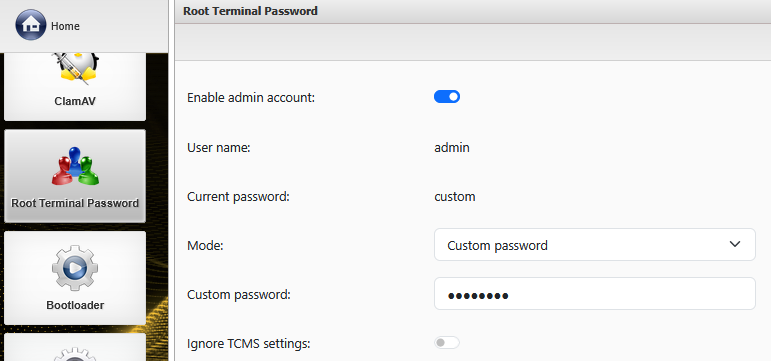

  1. Set up an admin account for the terminal
    To do this, navigate to kommbox →  System/Users → Root-Terminal-Password , and activate the admin account."

  2. Start the terminal
    Go to Kommbox → Tools → Start Terminal , or use the keyboard shortcut   CTRL  +  alt  +  shift  + t . Log in with the newly created admin account.

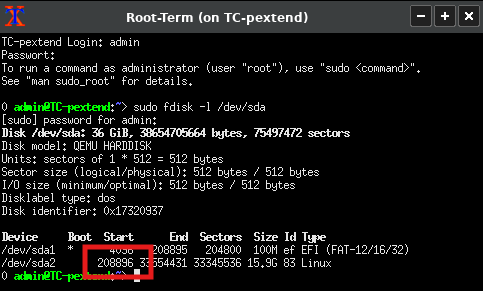

  3. Display existing partitions

    Use the following command to display all partitions on the storage device /dev/sda:

    sudo fdisk -l /dev/sda

     Then, make a note of the start sector of /dev/sda2.

  4. Start Fdisk
    Start Fdisk for the storage device /dev/sda using the following command:

    sudo fdisk /dev/sda

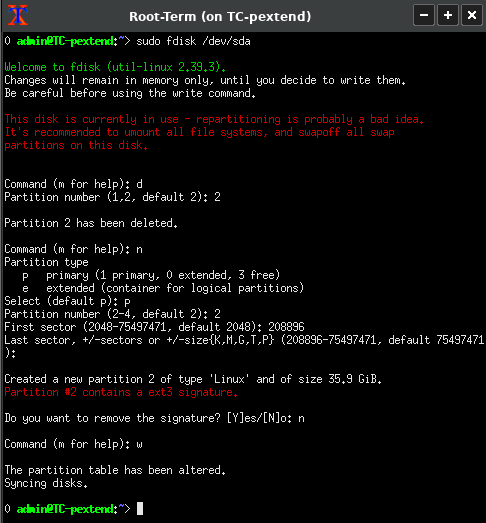

  5. Delete old partition and create a new one
    Enter the following commands and confirm each with Enter:
    dDelete partition
    2Select the 2nd partition
    nCreate a new partition
    pPrimary partition
    2Partition number: 2
    ......Start sector: the one noted in step 4
    EnterSet the last sector of the partition to the maximum value
    nNo, do not remove the signature
    wSave the changes to the partition


  6. Adjust the file system to the new partition size
    Use the following command to resize the file system to match the new partition size:
    sudo resize2fs /dev/sda2
  7. Restart Client
