Atrust - Technische Daten
Technische Daten
Processor | Intel Atom N270 1.6GHz |
|---|---|
Chipset | Intel 945GSE + Intel ICH7M |
System memory | 1GB |
Flash memory | 512MB |
Graphics Processor | Intel 945GSE integrated |
Video memory | 8MB shared memory for Intel 945GSE integrated |
Maximum resolutions | 1920 x 1200 |
Video | VGA-type video output (D-sub 15) |
I/O Ports | VGA, 1 DVI-D, 2 DVI-I, 3 front USB, 2 rear USB, 1 RS232, 1 RJ45, 1 headphone, |
Display | Quad monitor support |
Gigabit Ethernet | 10/100/1000Mb |
Dimensions | (W) 179 x (D) 44 x (H) 179 mm |
Weight | 1.1Kg (approximate) |
Cooling | Fanless |
Operating noise | No noise |
Operating temperature | 0℃ ~ 40℃ in vertical / 0℃ ~ 35℃ in horizontal |
Non-operating temperature | -30℃ ~ 60℃ |
Operating humidity (Rh) | 10% ~ 90% (non-condensing) |
Non-operating humidity (Rh) | 5% ~ 95% |
Operating voltage range | 100 ~ 240 VAC |
Rated line frequency | 50 ~ 60 Hz |
Rated output current (max) | 3A |
Output voltage | +12V DC |
Idle power | Idle power for one display is around 14.5W |
Operating system | Atrust OS |
Management | Atrust Device Manager (ADM) / Atrust Client Setup (ACS) |
Protocols | Citrix ICA/HDX, Microsoft RDP, VMware Horizon View |
Network standard | Gigabit Ethernet, DHCP, SSL, PPPoE, Wake on LAN |
Regulatory | CB, FCC, CE, CCC, BSMI, NRTL |
Options | Smart Card Reader (Manufacturing option) |
Zubehör

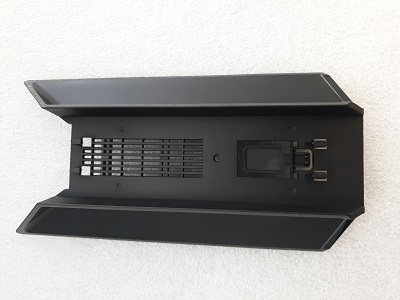

Vesa
